CAFS5025 Specifications (L/MIN) 500/600/800/1000/1200/1600 Interface 1’’

Name: CAFS5025 Specifications LMIN 500600800100012001600 Interface 1
Brand: Consensic
Price: 1 USD

Brand Name : Consensic

Model Number : CAFS5025

Place of Origin : WUXI

MOQ : Please contact us for details

Price : Offline conversation or face-to-face discussion

Payment Terms : L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability : 999

Delivery Time : 3-7 work days

Communication Method : RS485 (MODBUS)

Output Method : Analog Output 1-5 VDC 4-20mA (optional)

Protection Level : IP40

Interface : NTP 1 inch (customizable)

Specifications (L/MIN) : 500/600/800/1000/1200/1600

Contact Now

Performance Specifications

Functional Items and Parameters

Functional Items	CAFS5025 Specifications (L/MIN) 500/600/800/1000/1200/1600 Interface 1’’
Power Supply	8~24VDC, 50mA
Accuracy	±1.5% FS
Response Time	65 ms
Maximum Pressure	0.8 MPa (customizable)
Communication Method	RS485 (MODBUS)
Output Method	Analog Output 1-5 VDC
	4-20mA (optional)
Temperature	Medium Temperature (-10~65°C),
	Ambient Temperature (-25~85°C)
Interface	NTP 1 inch (customizable)
Protection Level	IP40
Calibration Method	Air, 20°C, 101.325 kPa
Material	Stainless Steel

Product Dimensions and Specifications

Product Model	Nominal Diameter	Interface	L	H	W	d	Specifications (L/MIN)
CAFS5025	25	1’’	136	72	51	25	500/600/800/1000/1200/1600

Product Features

High Accuracy: ±1.5% F.S. accuracy
Linear Output: No need for temperature compensation
Long-term Stability: Maintains minimal zero-drift
Quick Response: 65 ms response time
Wide Flow Rate Range: 0-60 m/s, withstands 100g impact
Robust Sensing Core: Solid-state, no surface cavity or fragile film, resistant to blockage and pressure impact
Output Options: Analog output (1-5 V) with optional digital RS485 communication output
Adaptability: Suitable for relatively humid gas measurements
Operating Temperature: -25°C to 85°C
Storage Temperature: -40°C to 90°C
Humidity: 0-100% RH
Condensate Water Resistance

Applications

Industrial
Medical
Petroleum
Instrumentation
Gas
Chemical
Metallurgy
Food Processing
Electromechanical Equipment

Product Description

The CAFS5025 gas mass flow sensor utilizes a micro-electromechanical system (MEMS) flow sensing chip, designed for clean, relatively dry gas flow measurement and process control across various applications. Its unique packaging technology accommodates different flow measurement ranges, ensuring high sensitivity, reliability, stability, and low cost.

The CAFS5025 comprises a MEMS flow sensing unit and a high-precision digital processing and calibration circuit (MCU). An integrated Δ-Σ A/D converter, internal calibration logic circuit, and MCU processor ensure real-time, accurate flow signal acquisition and internal compensation, eliminating the need for external calibration. This guarantees high-precision flow output.

With a user-friendly digital communication output, users can easily retrieve corresponding data. The wide application range of the CAFS5025 makes it a versatile solution for many industries.

China CAFS5025 Specifications (L/MIN) 500/600/800/1000/1200/1600 Interface 1’’ wholesale

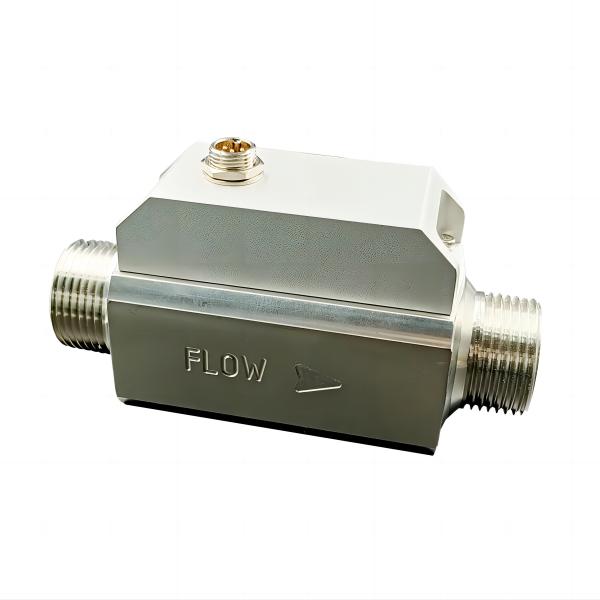

CAFS5025 Specifications (L/MIN) 500/600/800/1000/1200/1600 Interface 1’’ Images
