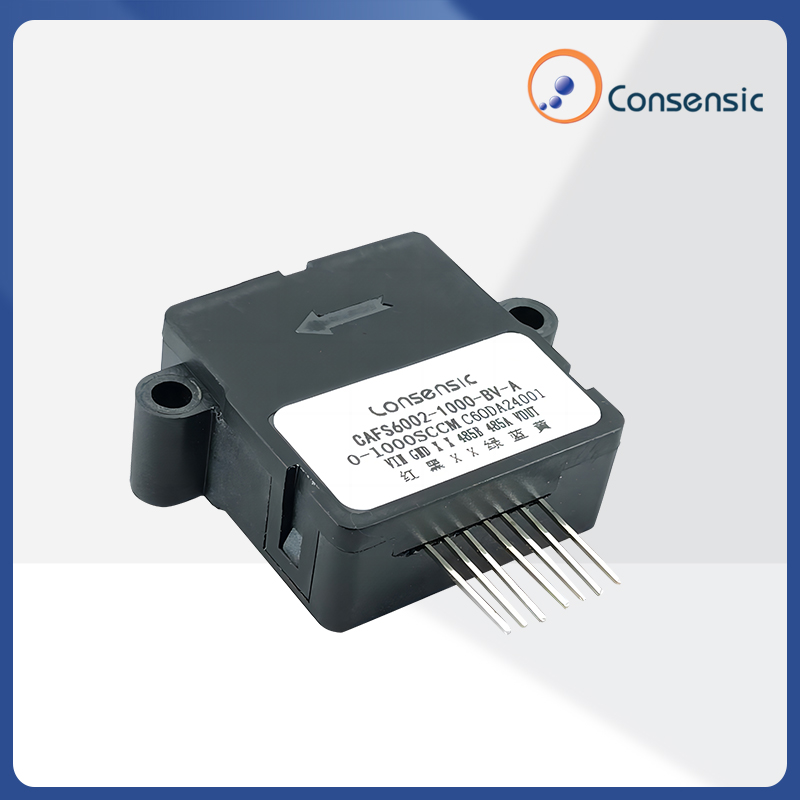

CAFS6000 Hi Accuracy Medical Flow Sensors 6ms Fast Response Time

Name: CAFS6000 Hi Accuracy Medical Flow Sensors 6ms Fast Response Time
Brand: Consensic
Price: 1 USD

China CAFS6000 Hi Accuracy Medical Flow Sensors 6ms Fast Response Time wholesale

Brand Name : Consensic

Model Number : CAFS6000

Certification : PTC22072602101C-CN01

Place of Origin : WUXI

MOQ : Please contact us for details

Price : Offline contact or face-to-face discussion can be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business

Supply Ability : 1000

Delivery Time : 3-7 work days

Maximum operating temperature range : -15°C to + 70°C

Calibration conditions : 0℃, 1 standard atmosphere

Flow range : 0~10000sccm Customizable specifications

Product classification : Medical Flow Sensors

Analog output : 1to5V

Fast response time : 6ms response time

Contact Now

Medical Flow Sensors CAFS6000 1.5％F. S accuracy 6ms fast response time

The CAFS6000 series products are based on MEMS flow sensing units, high-precision digital processing and calibration circuits (MCU), integrated high-resolution Δ - ∑ A/D converters, logic circuits with internal calibration functions, and MCU processors to ensure real-time and effective acquisition of sensing signals, obtain accurate flow signals, and perform corresponding compensation algorithm processing internally. Therefore, no external calibration compensation is required to ensure high-precision flow output; A friendly digital output communication method allows users to easily obtain corresponding data information; The product has a wide range of applications.

Performance Metrics

Test conditions: Vin = 12±0.1VDC, Ta=25°C. Relative humidity: 40% <relative humidity <60%. Maximum operating temperature range-15°C to + 70°C
specifications	High Accuracy 1.5%F. S Accuracy Analog Output 1 To 5V Medical Flow Sensors
specifications	least value	normal value	crest value	unit	remarks
Flow range	0	—	10000	sccm	Customizable specifications
service voltage	8-24V			V	customizable
current	50			mA
Maximum voltage output	4.96	5	5.02	V	linear
Zero point voltage output	0.98	1	1.02	V	linear
accuracy		1.5	2	%FS
repetitiveness		±0.3		%
resolution ratio		0.1		%	gamut
withstand voltage		0.3	0.5	MPa	customizable
response time	9	65	500	ms	customizable
zero drift		0.2		%Year	gamut
Calibration conditions	0℃, 1 standard atmosphere
The overall material	Silicon carbide, epoxy resin, PPS, and silicon shall serve as the sealing material
